Introduction

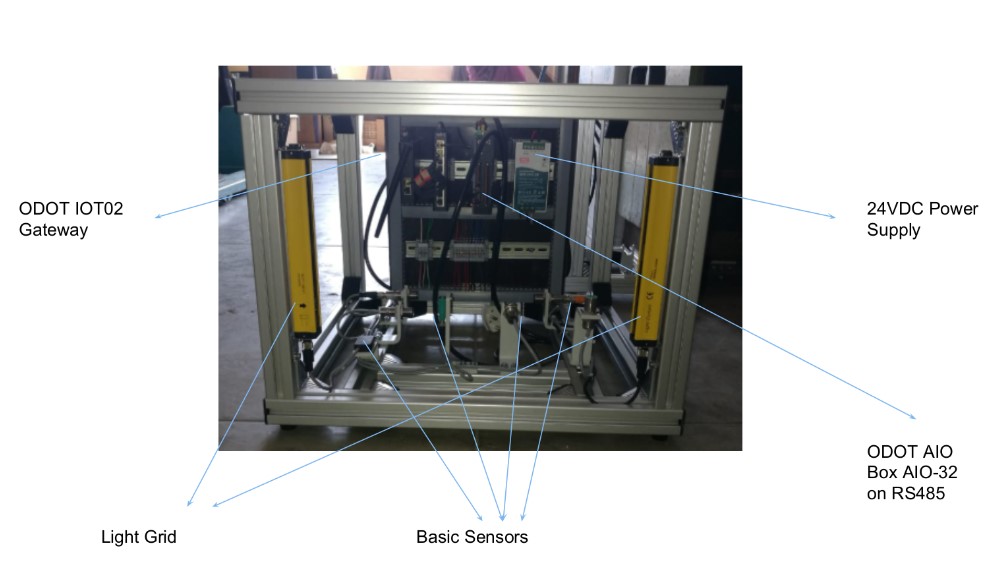

Digital Kit is an Ethernet-based integrated sensor and control system. ODOT Control is merged with DI signals from the Inductive Sensor, Thru-Beam Sensor, Retroreflective Sensor, Diffuse Sensor, Background Suppression Sensor, Capacitive Sensor, and Light Curtain Sensor. ODOT Gateway and the Modbus TCP Protocol are both used for data transmission via Ethernet.
Purpose
- Digital Kit are useful for Training and Testing
- Web and mobile-based visualization of sensor data

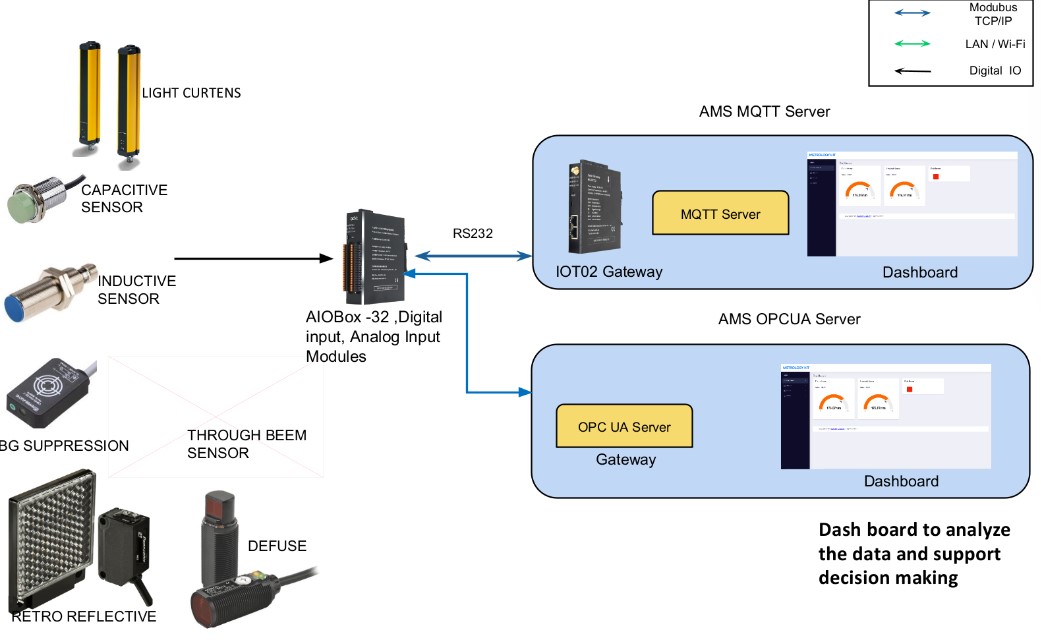

Digital Kit - Architecture
Digital Kit are possible to communicate in two ways to communicate.
- With Gateway via MQTT
- Without Gateway via OPCUA Server
MQTT : Required additional Hardware to transmit the data to the Ethernet.
OPCUA Server : Doesn't required additional Hardware to transmit the data to the Ethernet

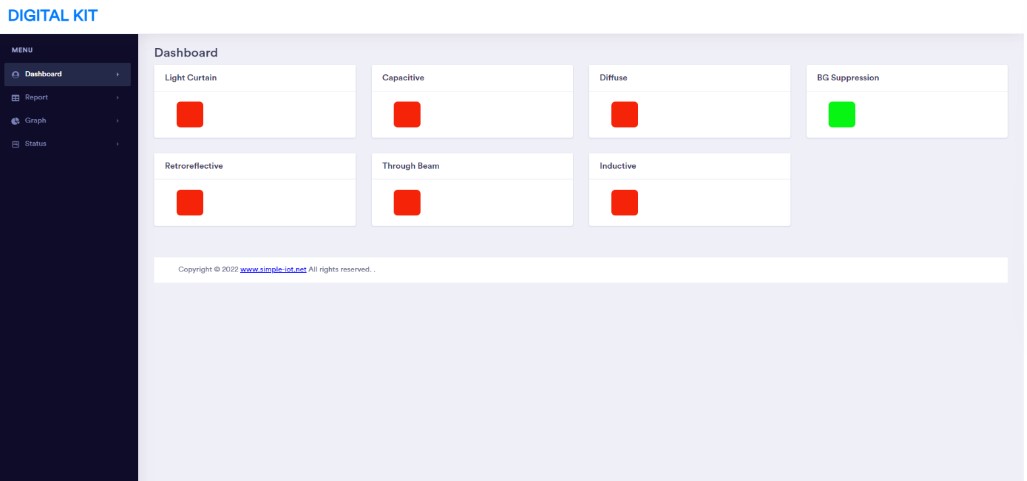

Digital Kit - Dashoboard
Digital Kit provides
- Analytic Dashboard
- Predictive Dashboard
- Report
- Automatic report generation
- Alarm & Events triggered
- Automatic Sending report via Email
